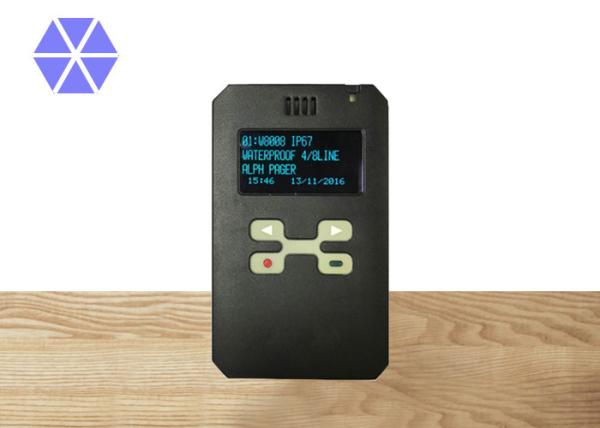

4 Way Pocsag Alphanumeric Pager With Anti - Bacterial Plastic Case

Product Categories

Shenzhen Wex Technology Co. Ltd

Contact Now

Brand Name : WEX

Model Number : W8008

Certification : CE,FCC,ROHS

Place of Origin : CHINA

MOQ : Negotiation

Price : Negotiable

Payment Terms : T/T, L/C, D/A

Supply Ability : 10000pcs/month

Delivery Time : 3-5 working days

Packaging Details : Standard Export Packaging

Name : Pocsag Alphanumeric Pager

Channel Spacing : 25KHz/12.5KHz

Signal Format : POCSAG

Case : Anti - Bacterial Plastic Case

Selectivity : 60dB ±25KHz

Way : 4 Way

Contact Now

4 Way Pocsag Alphanumeric Pager With Anti - Bacterial Plastic Case

Pocsag Alphanumeric Pager Function

Waterproof

Anti-bacterial plastic case use for hospital environment

Thinnest Pocsag Pager over world

OLED display make the message in any environment.

Multi charger is available

Pocsag Alphanumeric Pager SPECIFICATIONS

Frequency Range	138-174, 278-284, 405-480, 928-932MHz Bands
Channel Spacing	25KHz/12.5KHz
Signal Format	POCSAG
Data Transmission Rate	512bps or 1200bps or 2400bps
Modulation System	Carrier frequency shift keying (NRZ)
Frequency Deviation	±4.5KHz
Receiving Sensitivity	512bps 5uV/m, 1200bps 7uV/m, 2400bps 10uV/m
Selectivity	60dB ±25KHz
Image rejection	>50dB (138—480MHz); >40dB (928—932MHz)
Spurious Rejection	>60dB (138—284MHz); >50dB (405—932MHz)
Frequency Stability	±5ppm(138-284 MHz), ±5ppm(406-480 MHz), ±5ppm(928-932MHz)
Tone Alert Output	More than 75dB(SPL) 10cm, frequency 2731Hz
Operating Voltage	3.6V Lithium battery
Operating Temp. Humidity	-10º C to 50º C, 95% (at 40º C)
Storing Temp. Humidity	-10º C to 70º C, 95% (at 40º C)

Pocsag Alphanumeric Pager FEATURES

Message storage Capacity	19 Personal messages, 16 Mail drop messages, each 512 ASCII.
Address Code	8 paging addresses , last 4 addresses can be programmed personal or maildrop
Display Format	20 chars. x 4 line, or 20 chars. X 8 line
Time/Date Display	Real time with date displayed in 24 or 12 hours format
In Range Indication	If pager is within range of reception, " " will not be displayed
Low Voltage Alert	Display will show " " indicating low voltage
Message Received Time	Message receiving time is memorized and displayed together
Message protection	16 messages
Message Deletion	Self messages can be deleted individually; self messages and mail drop can be deleted all.
Unread message	Red LED blink and display ICON flashing to remind unread message and audible alert (optional)
Duplicate Message	Duplicate message indication provided
Melody Alert	8 different melody alerts, continuous audible alert (selected by programming software)
Alert Time	Can be programmed
Vibration Alert	Build-in vibrator will be activated automatically to indicate receptions of calls
Silent Alert	Pager can receive message without vibration, tone alert
Alarm	Built-in alarm function at preset time
Language	English, Spanish, French, German, Portuguese, Swedish
Battery	One 3.6V/500mA/Hour rechargeable Lithium battery
Battery Life	5 days with fully charge
Battery Back-up	Over 30 seconds (when the battery is replaced)
Weight	50 gms. (including battery)
Size	90.2x54.0x8.6mm

Details

4 Way Pocsag Alphanumeric Pager With Anti - Bacterial Plastic Case
